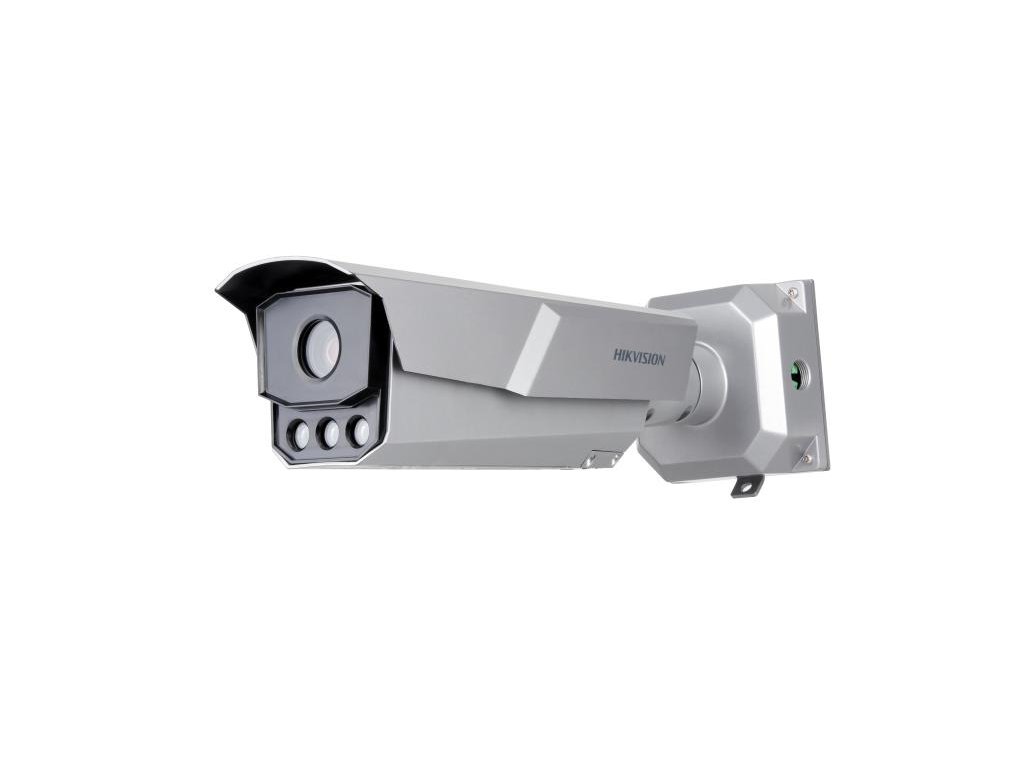

Hikvision iDS-TCM403-BI(G)/2812 - (2,8-12mm)

Detailní popis produktu

4 Mpx, IP venkovní bullet ANPR kamera; čtení SPZ; H265+, nízká světelná citlivost 0,001 Lux v barevném režimu; DarkFighter; WDR 140 dB; ICR; EXIR přísvit 40m; 3-axiální nastavení; motor zoom objektiv f2,8-12mm; alarm IN/OUT 1/1 + 2 x relé; podporuje záznam na micro SD kartu (max. 512GB); vyhřívání kamery; podporuje Wiegand, připojitelný k systému kontroly přístupu; podporuje rozpoznávání špinavých registračních značek; podporuje rozpoznání typy vozidla, barvy vozidla a rozpoznávání značky vozidla; API (profil S, profil G, profil T) ISAPI, SDK, ISUP, napájení 12 to 24 VDC nebo PoE (802.3at); Detekce nehod: zácpa, zastavené vozidlo, změna jízdního pruhu, jízda ve špatném směru,překročení rychlosti, jízda nízkou rychlostí; detekce až ve třech jízdních prizích; kamera je vhodná pro snímání SPZ projížděnícího vozidla v rychlosti od 5km/h do 120km/h

• Kamera
• Senzor obrazu1/1.8″ progressive scan CMOS
• Max. rozlišení2688 × 1520
• Min. osvětleníColor: 0.0005 Lux @ (F1.2, AGC ON),B/W: 0.0001 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Čas závěrky1/25 s to 1/100,000 s
• Den & NocIR cut filter

• Objektiv
• Focal Length & FOV



  2.8-12mm : Horizontal: 113.5° to 39°, Vertical: 58.4° to 22.7°, Diagonal: 141.3° to 44.3°,

  8-32mm : Horizontal: 41.9° to 15.1°°, Vertical: 22.9° to 8.64°, Diagonal: 48.8° to 17.3°,

  10-50mm: Horizontal: 32.2° to 7.8°°, Vertical: 18.1° to 4.4°, Diagonal: 37.1° to 8.95°

• FocusAuto
• Iris TypeDC-IRIS
• Clona

  2.8-12mm : F1.38,

  8-32mm : F1.7,

  10-50mm : F1.7

• Iluminátor
• Built-in Supplement Light TypeIR light
• Supplement Light Number3
• Built-in Supplement Light RangeUp to 50 m
• IR Wavelength850 nm

• Video
• Hlavní proud



  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

• Vedlejší stream



  50 Hz: 25 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1920 × 1080, 1280 × 760, 704 × 576, 352 × 288)

• Třetí proud



  50 Hz: 25 fps (1280 × 760, 704 × 576, 352 × 288)

  60 Hz: 30 fps (1280 × 760, 704 × 576, 352 × 288)

• Video komprese

  H.264 and H.265 encoding

  Main stream: H.265/H.264/MJPEG

  Sub-stream: H.265/H.264/MJPEG

• Přenosová rychlost videa32 Kbps to 16 Mbps
• H.264 typBaseline profile/Main profile/High profile
• H.265 typMain profile

• Zvuk
• Audio kompreseG.711/G.722.1
• Přenosová rychlost zvuku8Kbps (G.711) /16Kbps (G.722.1)

• Síť
• ProtokolyTCP/IP,ICMP,HTTP,HTTPS,FTP,SFTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IGMP,QoS,IPv4/IPv6,UDP,SSL/TLS,ISUP,ARP,802.1X
• Současný živý náhledUp to 6 channels
• APIISAPI,SDK,ISUP,ONVIF (PROFILE S, PROFILE G, PROFILE T, PROFILE M)
• Uživatel/hostitel

  Up to 32 users

  3 user levels: administrator, operator, and user

• BezpečnostPassword protection,Complicated password,HTTPS encryption,802.1X authentication (EAP-PEAP, EAP-LEAP, EAP-MD5),Watermark,IP address filter,Basic and digest authentication for HTTP/HTTPS,WSSE and digest authentication for ONVIF,RTP/RTSP over HTTPS,Control timeout settings,Security audit log,TLS 1.2, 1.3,Host authentication (MAC address)
• Síťové úložištěMicro SD/TF card (512 GB), local storage and CVR, NVR, ANR
• KlientHik-Central Master,Hik-Central Pro
• Webový prohlížečChrome V61+, IE9 to IE11, Firefox V41+, Edge

• Wireless (Mobile Communication)
• Frekvence

  /G model:

  LTE FDD: Band 1,2,3,4,5,7,8,12,17,28,66

  LTE TDD: Band 38,40

  WCDMA/HSPA+: Band 1,2,3,4,5,8

  GSM/GPRS/EDGE: 850/900/1800/1900MHz

• Standard/G model: LTE FDD/LTE TDD/WCDMA/HSPA+/GSM/GPRS/EDGE
• SIM Card Type



  /G model: Micro SIM

• Obraz
• Nastavení obrazuSaturation,Brightness,Contrast,Gain,Sharpness,White balance,AGC,Adjustable by client software or web browser.
• Přepínač den/nocAuto/Scheduled/Manual
• Wide Dynamic Range (WDR)140 dB
• Vylepšení obrazuBLC, 3D DNR

• Supplement Detection (Satellite Positioning)
• Satelitní určování polohy



  /G model: GPS

• Rozhraní
• Ethernet Interface1 RJ45 10M/100M/1000M Ethernet interface
• On-Board StorageBuilt-in memory card slot, supporting microSD/SDHC/SDXC card, up to 512GB
• ZvukSupported
• Alarm1 input interface, 1 output interface, 2 relays
• RS-4851 RS-485 interface
• Wiegand1 Wiegand (CardID 26bit, SHA-1 26bit, Hik 34bit)

• Událost
• Základní událostHDD Error, Network Disconnected, IP Address Conflicted, Vehicle Detector Exception, Traffic Light Detector Exception

• Silniční provoz a detekce vozidel
• CoverageUp to 3 lane(s)
• Inteligentní funkce

  Traffic flow detection：average speed, traffic flow, queuing length, and traffic status

  Incident detection: congestion, stopped vehicle, lane change, wrong-way driving, speeding, low-speed driving

• LPR Countries/Regions

  Middle East: The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain,

  Africa: Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria,

  Asia-Pacific: Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka,

  America: Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala,

  Europe: Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina,

  Russian-Speaking Regions: Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Accuracy (Under recommended installation and lighting conditions)

  Capture rate > 99%,

  Vehicle moving direction recognition accuracy > 98.5%,

  LPR accuracy > 98%,

  Mistaken capture rate < 2%

• Žádná detekce SPZSupported
• Motocykl LPRSupported
• Vehicle TypeCar,Van,Bus,Truck,Light Truck,SUV(MPV),Pickup,Motorcycle,Tricycle
• Vehicle Color

  Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black

  Recognizable at daytime only.

• Vehicle Manufacturer84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
• Capture Speed Range5 to 120 km/h
• Blocklist and AllowlistMax. 50000 records

• Všeobecné
• Operační systémLinux
• Napájení

  DC 12 V to 24 V, 1.25 A, max. 15 W, two-core terminal block,

  PoE: 802.3at, Type 2, Class 4, max. 15 W

• MateriálAluminum alloy
• Rozměry428.5 mm × 120 mm × 132.8 mm (16.9" × 4.72" × 5.2") (L × W × H)
• Rozměr balení595 mm × 259 mm × 193 mm (23.4" × 10.2" × 7.6") (L × W × H)
• WeightApprox. 2.975 kg (6.56 lb.)
• S váhou baleníApprox. 4.385 kg (9.67 lb.)
• Operating Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Storage Condition-30 °C to 70 °C (-22 °F to 158 °F). Humidity 95% or less (non-condensing)
• Obecné funkceOne-key reset, three streams, heartbeat, password protection, watermark
• Jazyk8 languages: English, Thai, Croatian, Korean, Russian, Traditional Chinese, Ukrainian, Spanish

• Schválení
• RF



  EN 301 489-1 V2.2.3, EN 301 489-3 V2.3.2, EN 301 489-19 V2.2.1, EN 301 489-52 V1.2.1, EN 301 511 V12.5.1, EN 301 908-2 V13.1.1, EN 301 908-1 V15.2.1, EN 301 908-13 V13.2.1, EN 303 413 V1.2.1, EN IEC 62311:2020

• EMCCE-EMC: EN 55032: 2015/A11:2020+A1:2020, EN IEC61000-3-2: 2019/A1:2021, EN 61000-3-3: 2013+A1:2019/A2:2021, EN 50130-4: 2011 +A1: 2014
• BezpečnostCB: IEC 62368-1: 2014+A11,CB: IEC 62368-1: 2018+A11,CE-LVD: EN 62368-1: 2014/A11: 2017
• životní prostředíCE-RoHS: 2011/65/EU,WEEE: 2012/19/EU,Reach: Regulation (EC) No 1907/2006
• OchranaIK10: IEC 62262:2002,IP67: IEC 60529-2013
• Antikorozní ochrana-Y: NEMA 4X (NEMA 250-2018)
