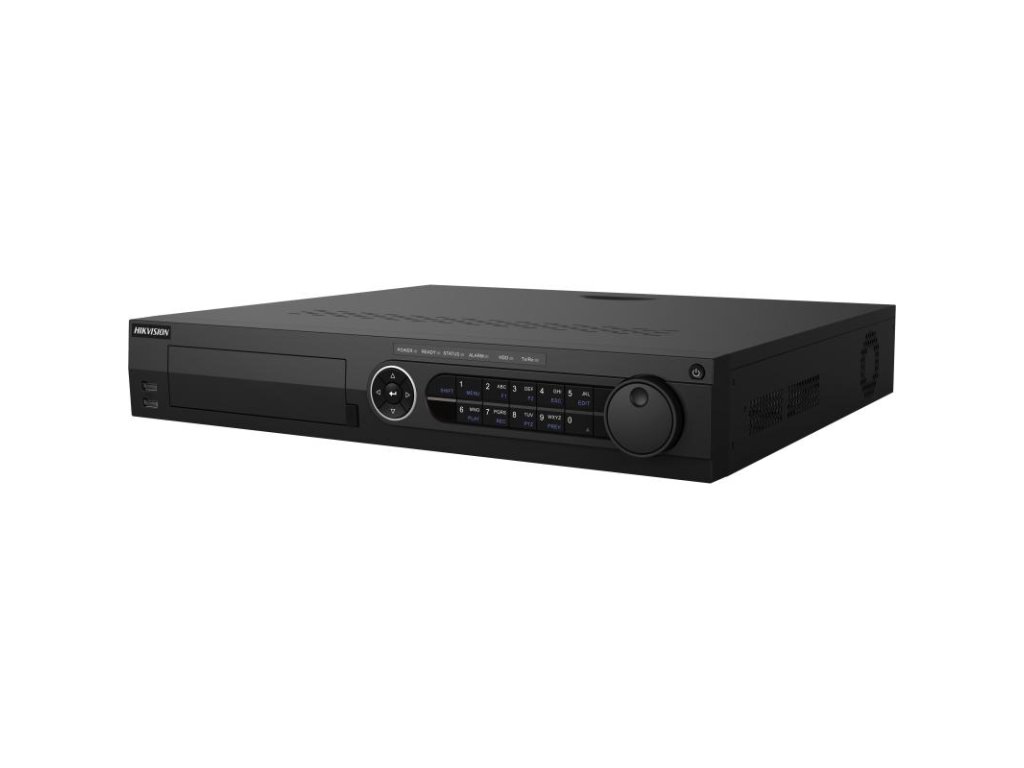

Hikvision iDS-7316HQHI-M4/S

Detailní popis produktu

• Detekce pohybu 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Ochrana perimetru
• Human/Vehicle AnalysisUp to 4-ch, for channel 1/2/3/4 only

• Video and Audio
• IP Video Input

  8-ch (up to 24-ch)

  Up to 6 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analogový video vstup

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input4 MP, 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input1080p25, 1080p30, 720p25, 720p30
• CVBS InputPAL/NTSC
• CVBS Output1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Zvukový vstup4-ch, RCA (2.0 Vp-p, 1 KΩ)
• Audio výstup2-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ, independent)
• Synchronous Playback16-ch

• Recording
• Video kompreseH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Rozlišení kódování

  When 1080p Lite mode is not enabled:

  3K lite/4 MP Lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/4 MP Lite/1080p Lite/720p Lite/VGA/WD1/4CIF/CIF

• Snímková frekvence

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport
• Typ streamuVideo, Video & Audio
• Audio kompreseG.711u
• Audio Bitrate64 Kbps

• Síť
• Total Bandwidth240 Mbps
• Vzdálené připojení128
• Síťový protokolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, SNMP
• Síťové rozhraní2, RJ45 10M/100M/1000M self-adaptive Ethernet interface

• Auxiliary Interface
• Sériové rozhraníRS-232, RS-485 (full-duplex), Keyboard
• SATA4 SATA interfaces
• eSATA1 eSATA interface
• KapacitaUp to 12 TB capacity for each disk
• USB rozhraní

  Front panel: 2 × USB 2.0

  Rear panel: 1 × USB 3.0



• Vstup/výstup alarmu16/4

• Všeobecné
• Zdroj napájení100 to 240 VAC, 50 to 60 Hz
• Spotřeba≤ 55 W (without HDD)
• Pracovní teplota-10 °C to +55 °C (+14 °F to +131 °F)
• Pracovní vlhkost10% to 90%
• Rozměry (Š × H × V)445 × 390 × 70 mm (17.5 × 15.4 × 2.8 inch)
• Váha≤ 5 kg (without HDD, 11.0 lb)
