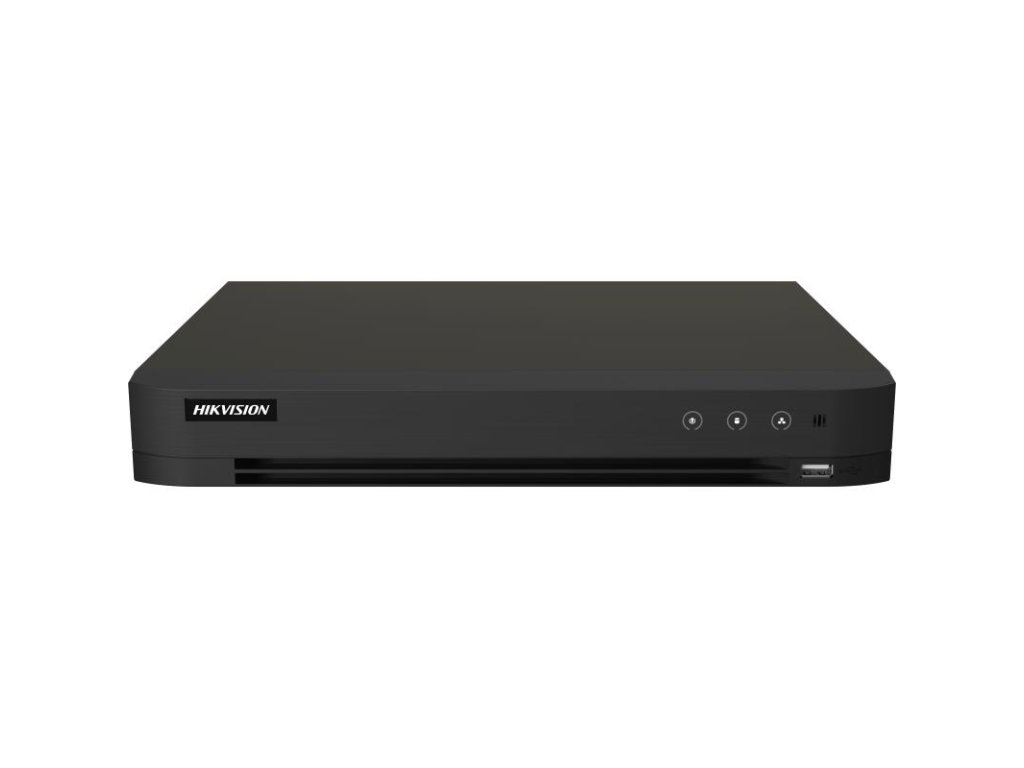

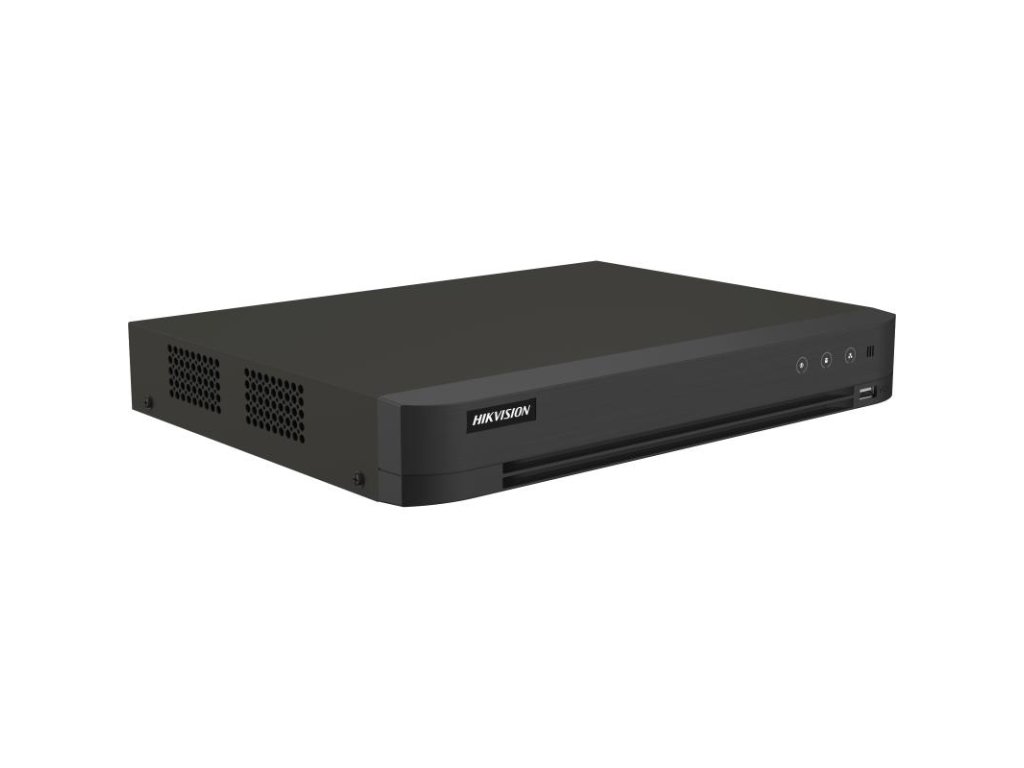

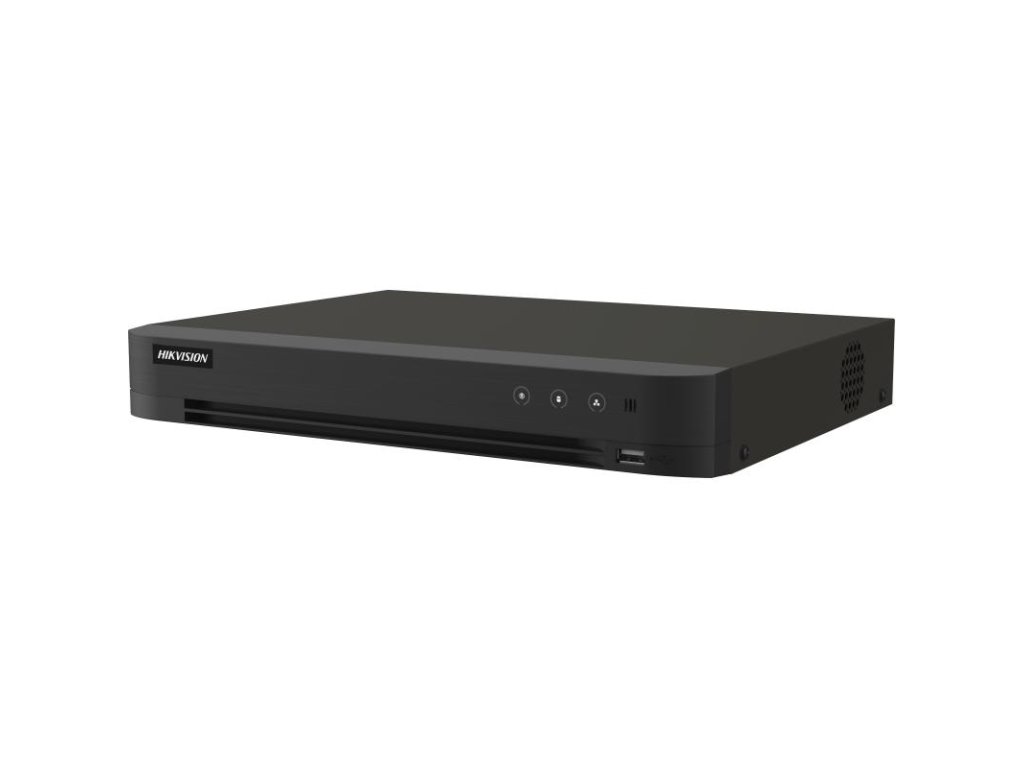

Hikvision iDS-7216HQHI-M1/XT

Detailní popis produktu

• Facial Recognition
• Srovnání obrazu obličejeFace picture comparison, face picture search (4-ch face picture comparison alarm for HD analog camera)
• Knihovna obrazů obličeje

  Up to 16 face picture libraries,;

  HDD damage will not cause data loss in the face picture library, because the library has been backed up by HDD and flash.

• Detekce pohybu 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;



• Ochrana perimetru
• Human/Vehicle AnalysisUp to 8-ch (advanced model)

• Detekce obličeje
• Facial Detection and Capture

  Face picture detection, face picture search；

  4-ch face picture capture

• Video and Audio
• IP Video Input8-ch (up to 24-ch), Up to 6 MP resolution
• Analogový video vstup

  16-ch

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input3K(2960 x 1665)@25/20 fps, 3K(3328x1504)@20fps,5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• AHD Input5 MP(2560 × 1944)@20 fps, 4 MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• HDCVI Input3K(2880×1620)@25fps, 5MP(2592 × 1944)@20 fps, 4MP(2560 × 1440)@25/30 fps,1080P@25/30 fps, 720P@25/30fps
• CVBS InputPAL/NTSC
• CVBS Output

  1-ch, BNC (1.0 Vp-p, 75 Ω),

  resolution: PAL: 704 × 576, NTSC: 704 × 480



• HDMI Output

  1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output



• VGA Output

  1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz,

  HDMI/VGA simultaneous output



• Zvukový vstup

  1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ)

  16-ch via coaxial cable



• Audio výstup1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronní přehrávání16-ch

• Recording
• Video kompreseH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Rozlišení kódování

  When 1080p Lite mode is not enabled:

  3K lite/5 MP lite/4 MP lite/1080p/720p/VGA/WD1/4CIF/CIF;

  When 1080p Lite mode is enabled:

  3K lite/5 MP lite/4 MP lite/1080p lite/720p lite/VGA/WD1/4CIF/CIF

• Snímková frekvence

  Main stream:

  When 1080p Lite mode not enabled:

  For 3K stream access: 3K lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 5 MP stream access: 5 MP lite@12fps;4 MP lite@15fps/1080pLite@20fps;720p/WD1/4CIF/VGA/CIF@20fps

  For 4 MP stream access: 4 MP lite@15fps/1080pLite@25fps (P)/30fps (N) ;720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)

  For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  When 1080p Lite mode enabled:

  3K lite/5 MP lite@12fps;4 MP lite@15fps;1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)

  Sub-stream:

  WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)

• Video Bitrate32 Kbps to 6 Mbps
• Dual-streamSupport main stream or sub stream
• Typ streamuVideo, Video & Audio
• Audio kompreseG.711u
• Audio Bitrate64 Kbps

• Dekódování
• Schopnost dekódováníup to 24-ch 1080P@30fps

• Síť
• Vzdálené připojení128
• Total Bandwidth256 Mbps
• Síťový protokolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF, ISUP
• Síťové rozhraní1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

• Auxiliary Interface
• SATA1 SATA interface, up to 12 TB capacity for each disk
• Sériové rozhraníRS-485 (half-duplex)
• USB rozhraní

  Front panel: 1 × USB 2.0;

  Rear panel: 2 × USB 3.0

• Vstup/výstup alarmuN/A (optional to support)

• Všeobecné
• Zdroj napájení12 VDC, 2 A
• Spotřeba≤ 24 W
• Pracovní teplota-10 °C to 55 °C (14 °F to 131 °F)
• Pracovní vlhkost10% to 90%
• Rozměry (Š × H × V)319 × 240 × 48 mm (12.6 × 9.4 × 1.9 inch)
• Váha≤ 2 kg (4.4 lb)
