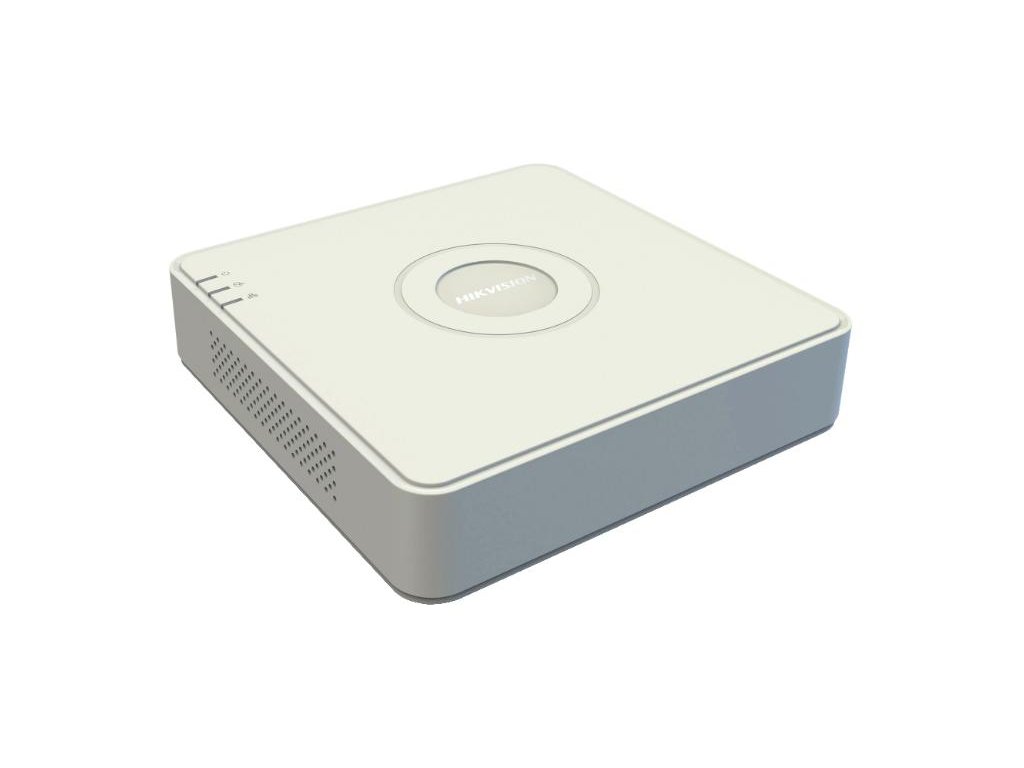

Hikvision iDS-7108HUHI-M1/S(C)

Detailní popis produktu

• Detekce pohybu 2.0
• Human/Vehicle Analysis

  Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

  Quick search by object or event type is supported;

• Ochrana perimetru
• Human/Vehicle AnalysisUp to 4-ch

• Detekce obličeje
• Facial Detection and CaptureFace picture detection, face picture search

• Video and Audio
• IP Video Input

  4-ch (up to 12-ch)

  Enhanced IP mode on: 8-ch (up to 16-ch), each up to 4 Mbps

  Up to 8 MP resolution

  Support H.265+/H.265/H.264+/H.264 IP cameras

• Analogový video vstup

  8-ch;

  BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

• HDTVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 3K(2960 x 1665)@20 fps, 5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 3 MP@18 fps,1080p@30 fps, 1080p@25 fps,720p@30 fps, 720p@25 fps
• AHD Input5 MP(2560 × 1944)@20 fps, 5 MP(2560 × 1944)@12 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• HDCVI Input8 MP(3840 × 2160)@15 fps, 8 MP(3840 × 2160)@12 fps, 5 MP(2592 × 1944)@20 fps, 4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
• CVBS InputPAL/NTSC
• HDMI Output1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output ModeHDMI/VGA simultaneous output
• Zvukový vstup

  1-ch, RCA (2.0 Vp-p, 1 KΩ)

  4-ch via coaxial cable

• Audio výstup1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the audio input)
• Synchronous Playback8-ch

• Recording
• Video kompreseH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Rozlišení kódování8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
• Snímková frekvence

  Main stream:

  8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps

  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

  Sub-stream:

  WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate32 Kbps to 10 Mbps
• Dual-streamSupport
• Typ streamuVideo, Video & Audio
• Audio kompreseG.711u
• Audio Bitrate64 Kbps

• Síť
• Total Bandwidth128 Mbps
• Vzdálené připojení64
• Síťový protokolTCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Síťové rozhraní1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface
• Wi-FiConnectable to Wi-Fi network by Wi-Fi dongle through USB interface

• Auxiliary Interface
• SATA1 SATA interfaces
• KapacitaUp to 10 TB capacity for each disk
• USB rozhraníRear panel: 2 × USB 2.0

• Všeobecné
• Zdroj napájení12 VDC, 2 A
• Spotřeba≤ 10 W (without HDD)
• Pracovní teplota-10 °C to +55 °C (+14 °F to +131 °F)
• Pracovní vlhkost10% to 90%
• Rozměry (Š × H × V)200 × 200 × 45 mm (7.9 × 7.9 × 1.8 inch)
• Váha≤ 1 kg (without HDD, 2.2 lb.)
