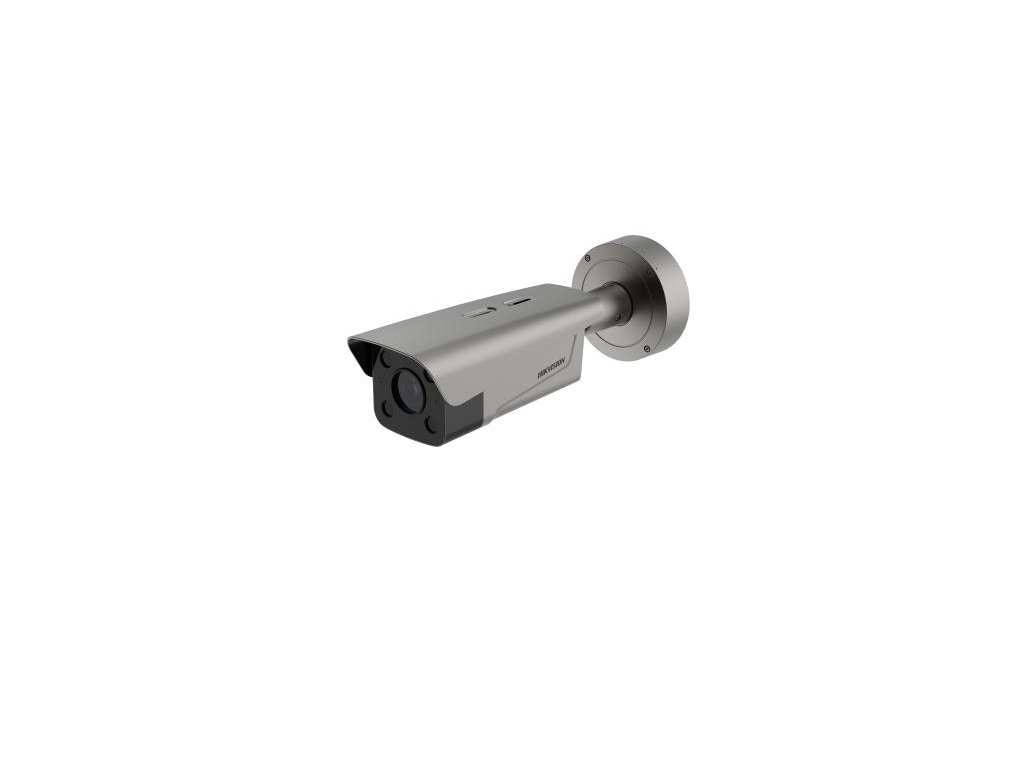

Hikvision DS-TCG406-E - (12V/PoE)(0832)

Detailní popis produktu

4 Mpx, IP venkovní bullet ANPR kamera; čtení SPZ; H265+, nízká světelná citlivost 0,0001 Lux; WDR 140 dB; ICR; motor zoom objektiv f8-32mm; alarm IN/OUT 3/1, Wiegand, RS-485, RS-232; podporuje záznam na micro SD kartu (max. 1TB); 4 vestavěné vysoce výkonné LED diody (integrované bílé světlo a IR); podporuje reléový výstup pro ovládání závory vozidla; podporuje Wiegand, připojitelný k systému kontroly přístupu; podporuje rozpoznávání špinavých registračních značek; podporuje rozpoznání typy vozidla, barvy vozidla a rozpoznávání značky vozidla; až 100 000 seznamů blokovaných a povolených SPZ; API (profil S, profil G, profil T) ISAPI, SDK, ISUP, Otap, Guarding Vision Platform; rozpoznání typu vozidla, barvy vozidla a vyrobní značky vozidla, napájení 12 to 24 VDC nebo PoE (802.3at); kamera je vhodná pro snímání SPZ stojícího nebo projížděnícího vozidla do rychlosti 50km/h, Důležité upozornění - kamera nepodporuje log ani export událostí o načtených SPZ značkách ve formátu xls do pc !!!

• Kamera
• Max. rozlišení2688 × 1520
• Typ senzoru1/1.8" Progressive Scan CMOS
• Min. osvětlení

  Color: 0.0005 Lux @ (F1.2, AGC ON)

  B/W: 0.0001 Lux @ (F1.2, AGC ON)

  0 Lux with IR

• Závěrka1/30 s to 1/100,000 s
• Přepínač den/nocSupported
• IR Cut Filter

  IR cut filter

  Blue glass module to reduce ghost phenomenon

• Objektiv
• Typ objektivu

  2.8 to 12 mm

  8 to 32 mm

• Clona

  2.8 to 12 mm: F1.2 to F2.5t

  8 to 32 mm: F1.7 to F1.73

• Focal Length & FoV



  2.8 to 12 mm, horizontal FoV: 114.5° to 41.8°, vertical FoV: 59.3° to 23.6°, diagonal FoV: 141.1° to 48°,

  8 to 32 mm, horizontal FoV: 42.5° to 15.1°, vertical FoV: 23.3° to 8.64°, diagonal FoV: 49.6° to 17.3°

• OhniskoAuto，Vari-focal lens, motor-driven lens

• Doplňkové světlo
• Doplňkový typ světlaIR Light, Warm White Light
• Doplňte rozsah světla

  Video:

  2.8 mm to 12 mm: 25 m

  8 mm to 32 mm: 50 m

  Vehicle License Plate:

  2.8 mm to 12 mm: 10 m

  8 mm to 32 mm: 20 m

• IR WavelengthWarm White Light 3000 K, IR Light 850 nm

• Obraz
• WDR140 dB
• Hlavní proud

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Vedlejší stream

  50 Hz: 25 fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480)

  60 Hz: 30 fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480)

• Nastavení obrazu

  Saturation: 0 to 100

  Brightness: 0 to 100

  Contrast: 0 to 100

  Gain: 0 to 100

  3D DNR: Off, Normal, and Expert modes are selectable.

  White balance: White Balance 1 and White Balance 2 are selectable.

• Přepínač parametrů obrazuYes
• WDR SwitchOn, Time, Brightness
• Snímková frekvence25 fps (P)/30 fps (N)

• Video
• ROI8 regions respectively for main stream and sub-stream, 6 levels for each region.
• Video komprese

  Main stream: H.265/H.264/MJPEG,

  Sub-stream: H.265/H.264/MJPEG,

• H.264 typ

  Low profile

  Medium profile

  High Profile

• Přenosová rychlost videa32 Kbps to 16 Mbps
• Bit Rate TypeConstant, Variable
• Škálovatelné kódování videa (SVC)H.265 and H.264 encoding

• Capture Mode
• Trigger TypeVideo Detection, I/O Coil, Radar Mixed Traffic
• Picture TypeScene Picture, Scene Picture + Close-up Picture
• Scene ModeEntrance & Exit Toll Gate, Underground Parking Entrance & Exit
• Capture TypeStrobe Light Mode

• Capture Parameters
• Formát obrazuJPEG
• Zachycení rozlišení2688 × 1520
• Rozpoznávání SPZForward, Backward, Bidirection
• LED ControlSupports automatic light control/time control of LEDs
• Inteligentní rozpoznáváníANPR, Motor Vehicle Feature, Vehicle Color Recognition, Enable Vehicle Manufacturer Recognition
• Capture Picture OverlayLocation, Capture Time, Plate Number, Capture No., Vehicle Color Vehicle Type

• Entrance and Exit
• Barrier Gate Control ModeBy Camera/Platform/Mixed
• Keep Boom Pole Open for Following VehicleEnable/Disable
• Lock Barrier Gate for Large-Sized VehicleYes
• Reléový výstup2-ch relay output, supporting opening and closing of barrier gates
• Barrier Gate StatusNone, Barrier Gate Close In Place, Barrier Gate Open In Place, Remote Control Open In Place
• Allowlist and Blocklist

  Up to 100,000 allowlist and blocklist totally

  Note: Only when the TF card is available, can the function take effect.

• Síť
• Síťové úložištěNAS (NFS, SMB/CIFS), auto network replenishment (ANR) together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• ProtokolTCP/IP, ICMP, HTTP, HTTPS, FTP Upload Picture, SRTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, SNMP, IGMP, QoS, IPv6, UDP, SSL/TLS, WebSocket
• APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, ISUP, Otap, Guarding Vision Platform
• KlientHik-Connect, Hik-Central，SDKdemo，PMS
• Webový prohlížečPlug-in required live view: IE10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local service: Chrome 41.0+, Firefox 30.0+
• BezpečnostPassword protection, complicated password, HTTPS encryption, watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP OVER HTTPS, Control Timeout Settings, Security Audit Log, TLS 1.2

• Rozhraní
• Zvuk1 input (line in), 1 output (line out)
• Vstup alarmu3-ch triggered inputs
• Výstup alarmu1-ch alarm output
• WiegandSupported: CardID 26bit, SHA-1 26bit, Hik 34bit, NEWG 72bit
• RS-2321-ch RS-485 serial port
• RS-4851-ch RS-232 serial port
• Síťové rozhraní1 RJ45 10M/100M self-adaptive Ethernet port
• Memory Card Slot1 TF card slot, up to 1 TB

• Inteligentní funkce
• LPR Accuracy

  Capture rate > 98%

  Vehicle moving direction recognition accuracy > 98.5%

  LPR accuracy > 98%

  Mistaken capture rate < 2%

  European and Russian-Speaking Regions:

  LPR accuracy > 98%

  Country/Region recognition accuracy > 95%

• Vehicle Type RecognitionCar/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
• Vehicle ColorRed, Yellow (including orange, golden), Green, Cyan, Blue, Purple, Pink, Brown, White, Gray (including silver), Black
• Vehicle Brand84 manufacturers: Hyundai, Toyota, KIA, Honda, Volkswagen, Benz, Nissan, Ford, Isuzu, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, GAC HINO, Peugeot, SsangYong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, Dongwo, Subaru, Iveco, MINI, JEEP, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, Saic Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Guangzhou Yunbao, Joylong, Geely, Cadillac, JBC, An‘kai, Haima, Foton, King Long, Dongfeng, Geely-Emgrand, Perodua, UD, BYD, Renault Samsung, Proton, HICOM, Malaysia_Unknown 1, Hyundai-Rohens, SsangYong-Old Version, Equus-Old Version, CNHTC, Rolls-Royce, Beiben Truck, Haval, Hino, Kia-Borrego, Chang‘an, Alfa, FORO
• ANPR Supported Country/Region

  Middle East:

  The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain

  Africa:

  Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria

  Asia-Pacific:

  Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Myanmar, India, Mongolia, Cambodia, Laos, Bangladesh, Nepal, Sri Lanka

  America:

  Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala

  Europe:

  Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian, Belgium, Luxembourg, Albania, Kosovo, Serbia, Romania, Montenegro, Denmark, Finland, Sweden, Slovenia, Portugal, Malta, Cyprus, Iceland, Liechtenstein, Bosnia and Herzegovina

  Russian-Speaking Regions:

  Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia, Turkmenistan, Tajikistan

• Schválení
• EMC

  CE-EMC (EN 55032: 2015, EN 61000-3-2: 2019, EEN 61000-3-3: 2013 + A1: 2019, EN 50130-4: 2011 + A1: 2014);

  KC (KN 32: 2015, KN 35: 2015)

• Bezpečnost

  CB (IEC 62368-1: 2014 + A11);

  CE-LVD (EN 62368-1: 2014/A11: 2017);

  BIS (IS 13252 (Part 1): 2010/IEC 60950-1: 2005);

• životní prostředíCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
• OchranaIK10 (IEC 62262: 2002), IP67 (IEC 60529-2013)

• Všeobecné
• Zdroj napájení12 to 24 VDC/PoE (802.3at, 44 V to 57 V), 300 mA to 230 mA
• Pracovní spotřeba10 W Max.
• Dimensions415 mm × 145 mm × 145 mm (16.34 × 5.71 × 5.71 inch)
• Váha3.25 kg (7.17 lb.)
• Weight (with Package)4.3 kg (9.48 lb.)
• Package Size465 mm × 200 mm × 198 mm (18.31 × 7.87 × 7.80 inch)
• Podmínky skladování

  Temperature: -20 °C to 70 °C (- 4°F to 158 °F)

  Humidity: 95% (non-condensing)

• Spuštění a provozní podmínky

  Temperature: -30 °C to 70 °C (-22 °F to 158 °F)

  Humidity: 95% (non-condensing)

• Jazyk33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
