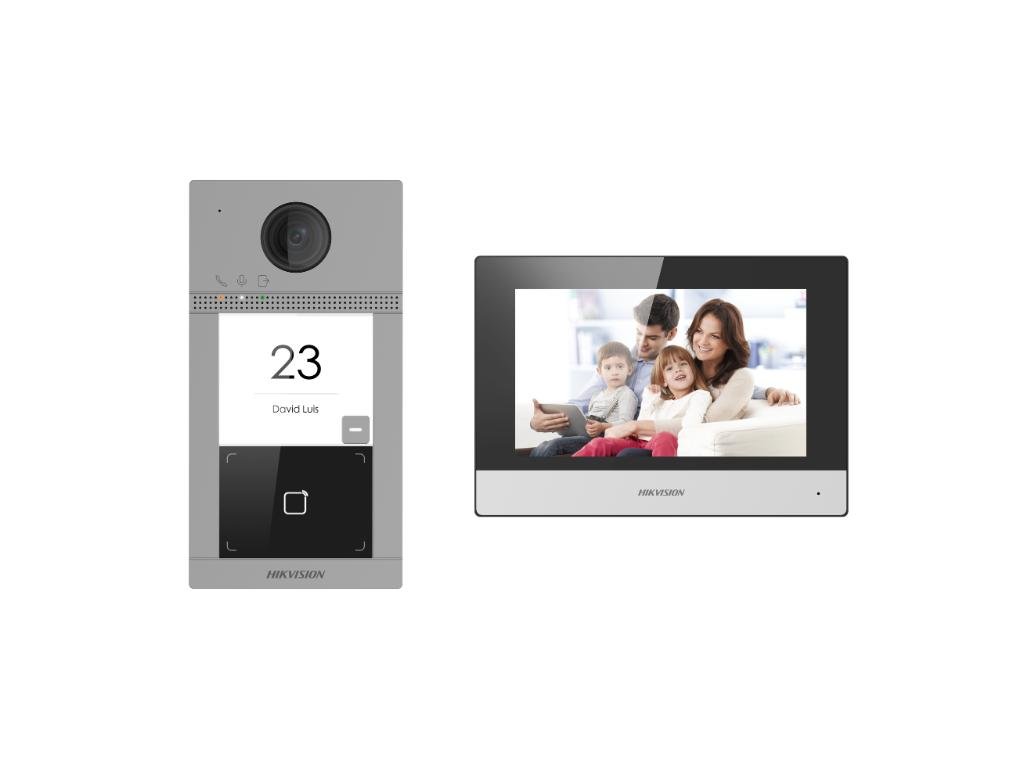

Hikvision DS-KIS604-S(C)

Detailní popis produktu

• Door station/System parameters
• Operation systemEmbedded Linux operation system
• Flash

  32 M



• RAM

  256 M



• Door station/Video parameters
• Supplement lightIR supplement
• Resolution

  Main stream : 1920 × 1080

  Sub stream : 640 × 480

• Lens1
• WDRSupport
• FOVHorizontal: 124° Vertical: 75°
• Video compression standardH.264

• Door station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker (more than 80 dB within 30 cm)
• Audio qualityNoise suppression and echo cancellation
• Volume adjustmentAdjustable
• Audio compression standardG.711 U, G.711 A
• Audio compression Rate64 Kbps
• Audio intercom

  Two-way audio communication



• Door station/Capacity parameters
• User capacity2000

• Door station/Network parameters
• Network protocolTCP/IP, RTSP
• Wi-FiWi-Fi 802.11 b/g/n
• Wired network10/100 Mbps self-adaptive Ethernet
• 3G/4G/
• Bluetooth/

• Door station/Device interfaces
• Network interface1
• RS-485

  1



• Wiegand0
• Alarm input4
• Lock control2
• Exit button2 Max.
• Door contact2
• Alarm output0
• Power interface1
• TAMPER1
• USB interface0
• TF card1 (reserved)

• Door station/General
• Button1
• Indicator3
• Power consumption

  ＜ 10 W

  ;＜ 10 W

• Power supply

  Standard PoE/12 VDC;IEEE802.3af, standard PoE

  12 VDC

• Working temperature-40° C to 53° C(-40° F to 127.4° F)
• Working humidity10% to 95%
• Dimension174 mm × 91 mm × 29 mm
• Application environmentOutdoor
• Protection level

  IP65, IK08



• Weight380 g
• InstallationSurface Mounting

• Indoor station/System parameters
• Operation systemEmbedded Linux operation system
• Memory128 MB
• Flash32 MB

• Indoor station/Display parameters
• Display screen7-inch colorful TFT screen
• Display resolution1024 × 600
• Operation methodCapacitive touch screen

• Indoor station/Audio parameters
• Audio inputBuilt-in omnidirectional microphone
• Audio outputBuilt-in loudspeaker
• Audio quality

  Noise suppression and echo cancellation



• Audio compression standard

  G.711 U



• Audio compression Rate

  64 Kbps



• Indoor station/Network parameters
• Network interface1 RJ-45 10/100 Mbps self-adaptive
• Wired network

  10/100 Mbps self-adaptive



• Wireless network

  Wi-Fi 802.11 b/g/n



• Protocol

  TCP/IP, SIP, RTSP



• Indoor station/Device interfaces
• RS-4851
• Alarm input8-ch alarm inputs
• Relay output2
• TF cardMax to 32 G, SD 2.0 or lower version

• Indoor station/General
• Power consumption

  ≤ 6 W



• Power supplyStandard PoE,12VDC
• Working temperature

  -10 °C to 55 °C (14 °F to 131 °F)



• Working humidity10% to 90%
• Dimension (L x W x H)

  200 mm × 140 mm × 15.1 mm (7.9" ×

  5.5 × 0.6\")"
