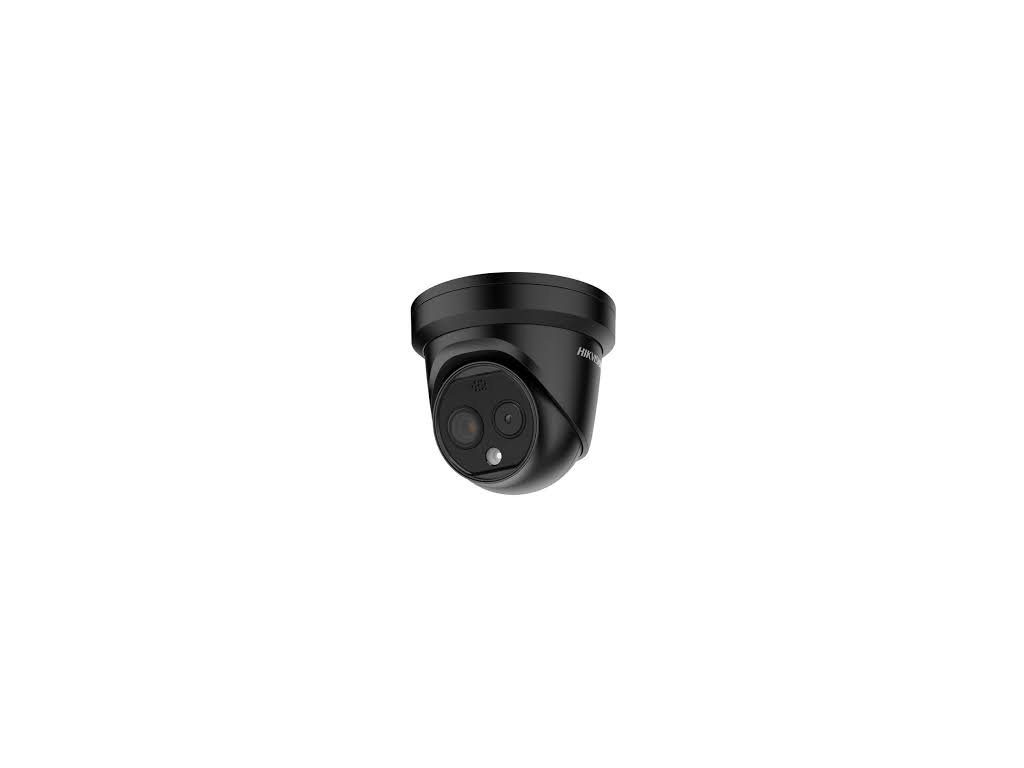

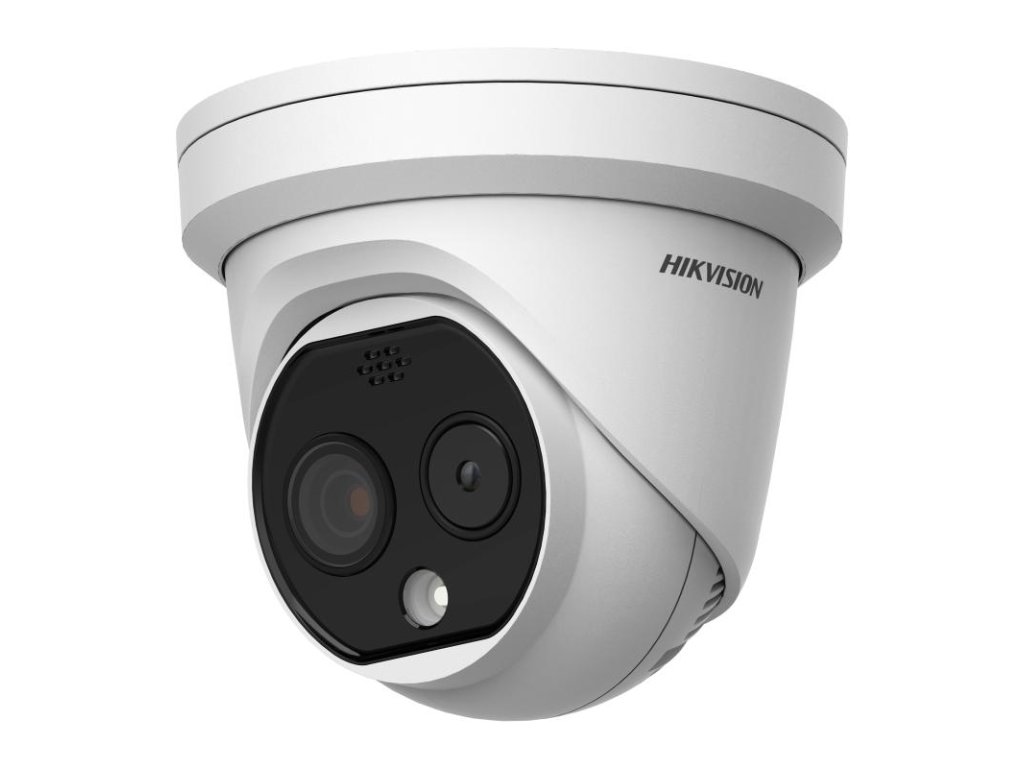

DS-2TD1228-2/QA

Detailní popis produktu

• Tepelný modul
• Senzor obrazuVanadium Oxide Uncooled Focal Plane Arrays
• Řešení256 × 192
• Pixel Pitch12 μm
• Spectral Range8 μm to 14 μm
• NETD< 40 mK (25°C, F1.1)
• Ohnisková vzdálenost2.1 mm
• IFOV5.71 mrad
• Zorné pole90.0° × 65.4° (H × V)
• Min. Zaostřovací vzdálenost0.1 m
• ClonaF1.0
• Digitální Zoom×2, ×4

• Optický modul
• Senzor obrazu1/2.7" Progressive Scan CMOS
• Řešení2688 × 1520
• Min. osvětlení0.0176Lux @(F2.25,AGC ON) ,0 Lux with IR
• Rychlost závěrky1 s to 1/100,000 s
• Ohnisková vzdálenost2.2 mm
• Zorné pole117.8° × 70.4° (H × V)
• Aperture (Range)F2.25
• WDR120 dB

• Image Effect
• Target ColorationYes. Supported in white hot and black hot mode.

• Iluminátor
• IR vzdálenostUp to 15 m
• IR intenzita a úhelAutomatically adjusted

• Audible and Visual Alarm
• Dosah bílého světlaUp to 30 m
• Vizuální alarmYes. White light alarm with adjustable flashing frequencies
• Audio alarm

  Yes, for two types of audible alarm (VCA and Temperature Exception)

  2 preset voice alerts (one for each)

  6 importable user-defined voice alerts (6 options shared in the two types)

• Inteligentní funkce
• VCA4 VCA rule types (line crossing, intrusion, region entrance, and region exiting), up to 8 VCA rules in total.
• Měření teploty3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line)
• Teplotní rozsah-20°C to 150°C (-4°F to 302°F)
• Přesnost teploty±8°C (±14.4°F)
• Obecné funkceFire detection, smoking detection, sun-reflection filter

• Video and Audio
• Hlavní proud

  Thermal:

  25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

  60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)

• Sub-stream

  Thermal:

  25 fps (704 × 576, 640 × 512, 320 × 240)

  Optical:

  50 Hz: 25 fps (704 × 576, 352 × 288)

  60 Hz: 30 fps (704 × 480, 352 × 240)

• Video komprese

  Main Stream: H.265/H.264

  Sub-Stream: H.265/H.264/MJPEG

• Audio kompreseG.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM

• Síť
• ProtokolyIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE,TP,Bonjour,SFTP,SRTP,TLS
• Síťové úložištěMicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• APIISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open Network Video Interface,ONVIF (Profile S, Profile G)
• Současný živý náhledUp to 20 channels
• Úroveň uživatele/hostiteleUp to 32 users, 3 levels: Administrator, Operator, User
• BezpečnostUser authentication (ID and password), MAC address binding, HTTPS encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering
• KlientiVMS-4200, Hik-Connect
• Webový prohlížeč

  Live view (plug-in allowed) : Internet Explorer 11

  Live view (plug-in free) : Chrome 57.0 +, Firefox 52.0 +

  Local service : Chrome 57.0+, Firefox 52.0 +

• Rozhraní
• Vstup alarmu1, alarm input (0-5 VDC)
• Výstup alarmu1, alarm output (alarm response actions configurable)
• Akce alarmuSD recording/Relay output/Smart capture/FTP upload/Email linkage
• Zvukový vstup

  1, 3.5 mm Mic in/Line in interface

  Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10%

• Audio výstupLinear level, impedance: 600 Ω
• Komunikační rozhraní

  1, RJ45 10 M/100 M Self-adaptive Ethernet interface.

  1, RS-485 interface (half duplex)

• Všeobecné
• Jazyk webového klienta32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
• Zdroj napájení

  12 VDC ± 25%, φ 5.5 mm coaxial power plug

  PoE (802.3af, class 3)

• Spotřeba energie

  12 VDC ± 25%: 0.5 A, Max 6 W

  PoE (802.3af, class 3): 42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W

• Working Temperature/Humidity

  Temperature: -40°C to 65°C (-40°F to 149°F)

  Humidity: 95% or less

• Úroveň ochrany

  IP67 Standard

  TVS 6000V lightning protection, surge protection, voltage transient protection

• Dimensions138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85")
• Váha940 g (2.07 lb)

• Tabulka rozsahu detekce/rozsah inteligentních funkcí
• Dosah VCA pro osoby16 m
• Dosah VCA pro vozidla48 m
